RR5060
RR5060

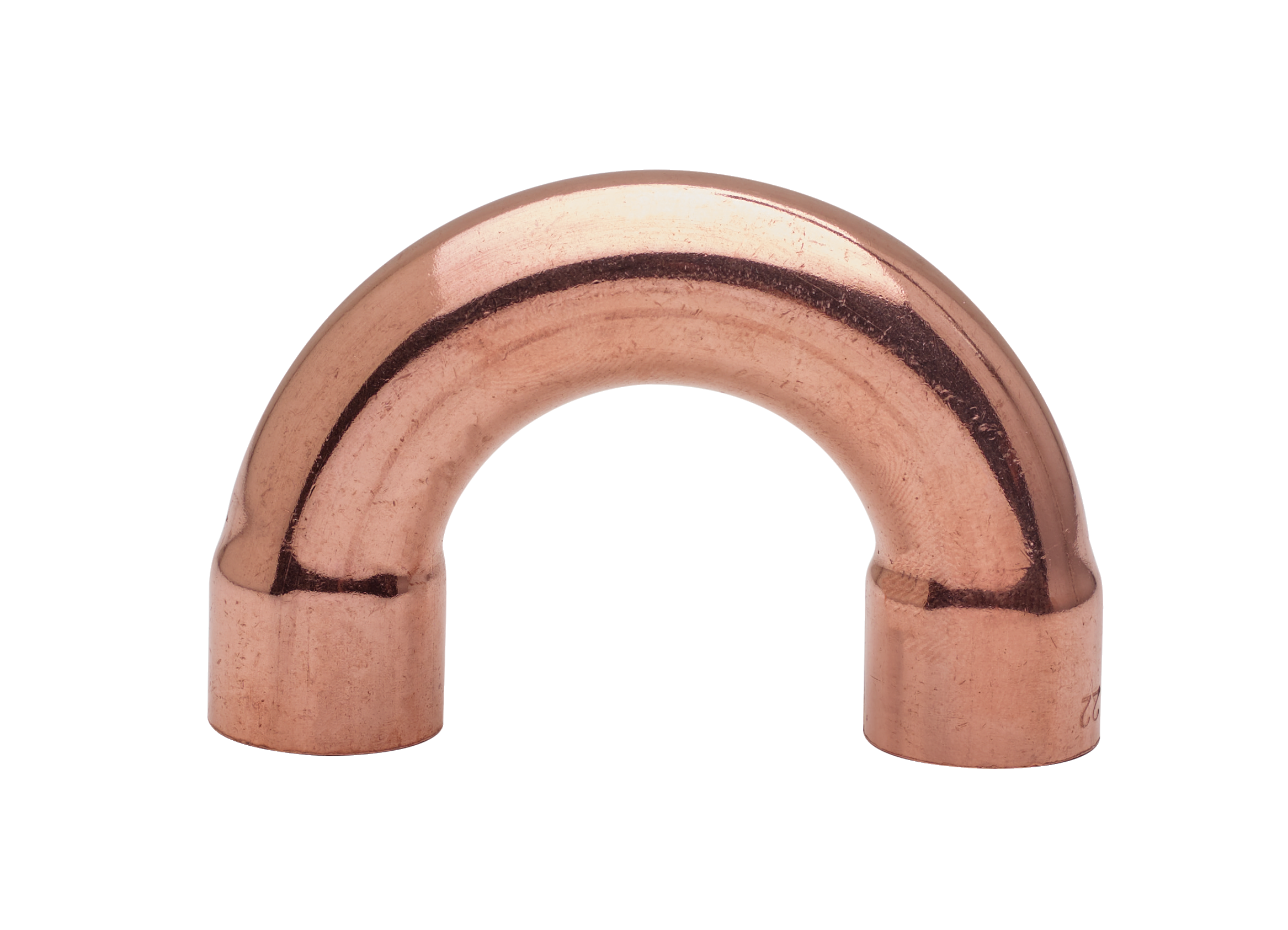

F/F 180° bend.
Technical specifications

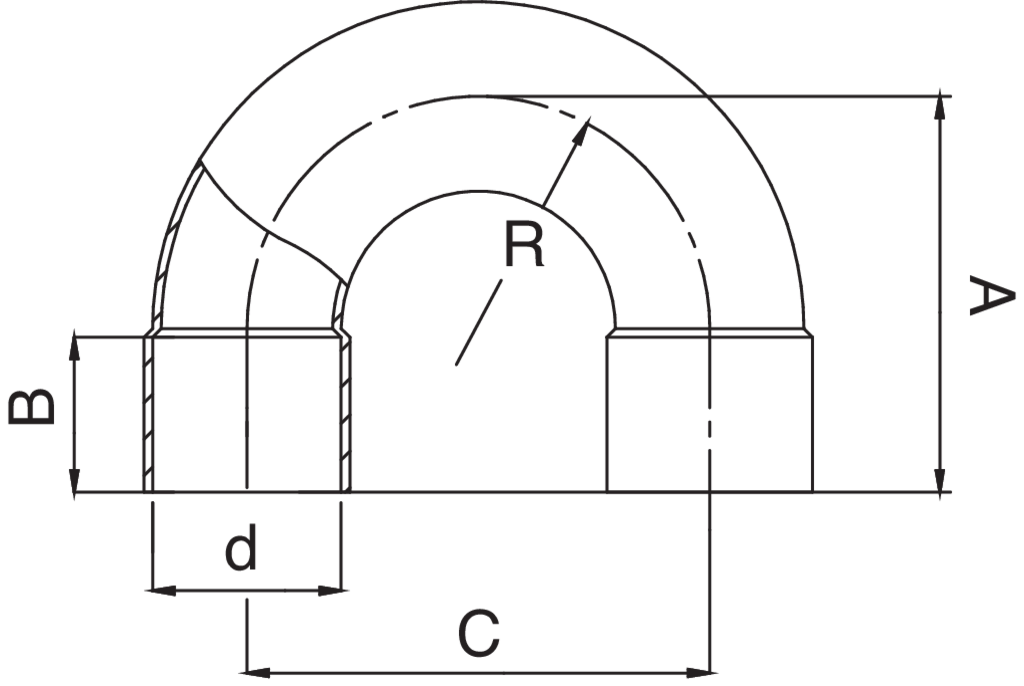

Drawing
Table
d
BAG
MASTER BOX
CODE
A
B min
C
R
10
10
300
RR5060010010000
24,5
7,8
30
15
12
10
250
RR5060012012000
27
8,6
36
18
14
10
200
RR5060014014000
35
10,6
45
22,5
15
10
100
RR5060015015000
30,5
10,6
45
22,5
16
10
150
RR5060016016000
35
10,6
48
24
18
10
150
RR5060018018000
39,5
12,6
54
27
22
10
60
RR5060022022000
47
15,4
66
32
28
5
60
RR5060028028000
59
18,4
84
42
35
5
30
RR5060035035000
93
23
140
47,5
42
1
12
RR5060042042000
112
27
168
84
54
1
6
RR5060054054000
140
32
216
108
Applications
