RS8130

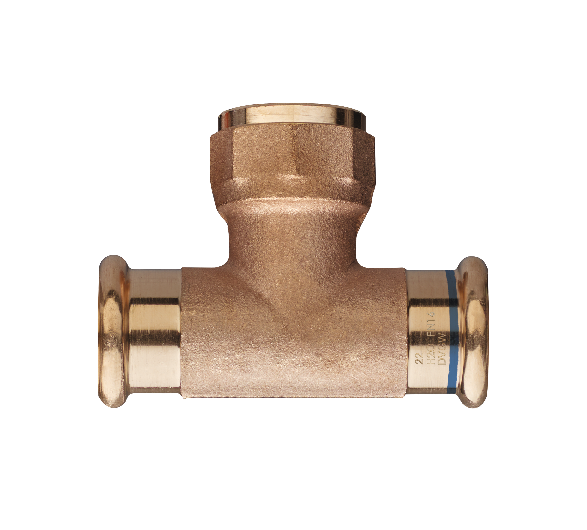

Bronze F/female thread/F tee.

Technical specifications

Drawing

Table

CODE	SIZE	MASTER BOX	RP	D	L1	L2	Z1	Z2
RS8130012A12012	1/2x12	100	1	12	44	23	26	13
RS8130015A12015	1/2x15	80	1	15	45	23	23	13
RS8130015A38015	3/8x15	80	3	15	43	22	21	12
RS8130018A12018	1/2x18	60	1	18	47	24	24	14
RS8130022A12022	1/2x22	50	1	22	48	25	24	15
RS8130022A34022	3/4x22	40	3	22	53	31	29	16
RS8130028A12028	1/2x28	25	1	28	53	50	28	35
RS8130028A34028	3/4x28	20	3	28	53	50	27	35
RS8130028B01028	1x28	25	1	28	56	35	30	20
RS8130035A12035	1/2x35	20	1	35	49	38	23	23
RS8130042A12042	1/2x42	10	1	42	55	50	19	35
RS8130054A12054	1/2x54	5	1	54	67	54	27	39

Notes

For dimensions > 54 mm, item RB8130 is available. Water use only.
