RS9243

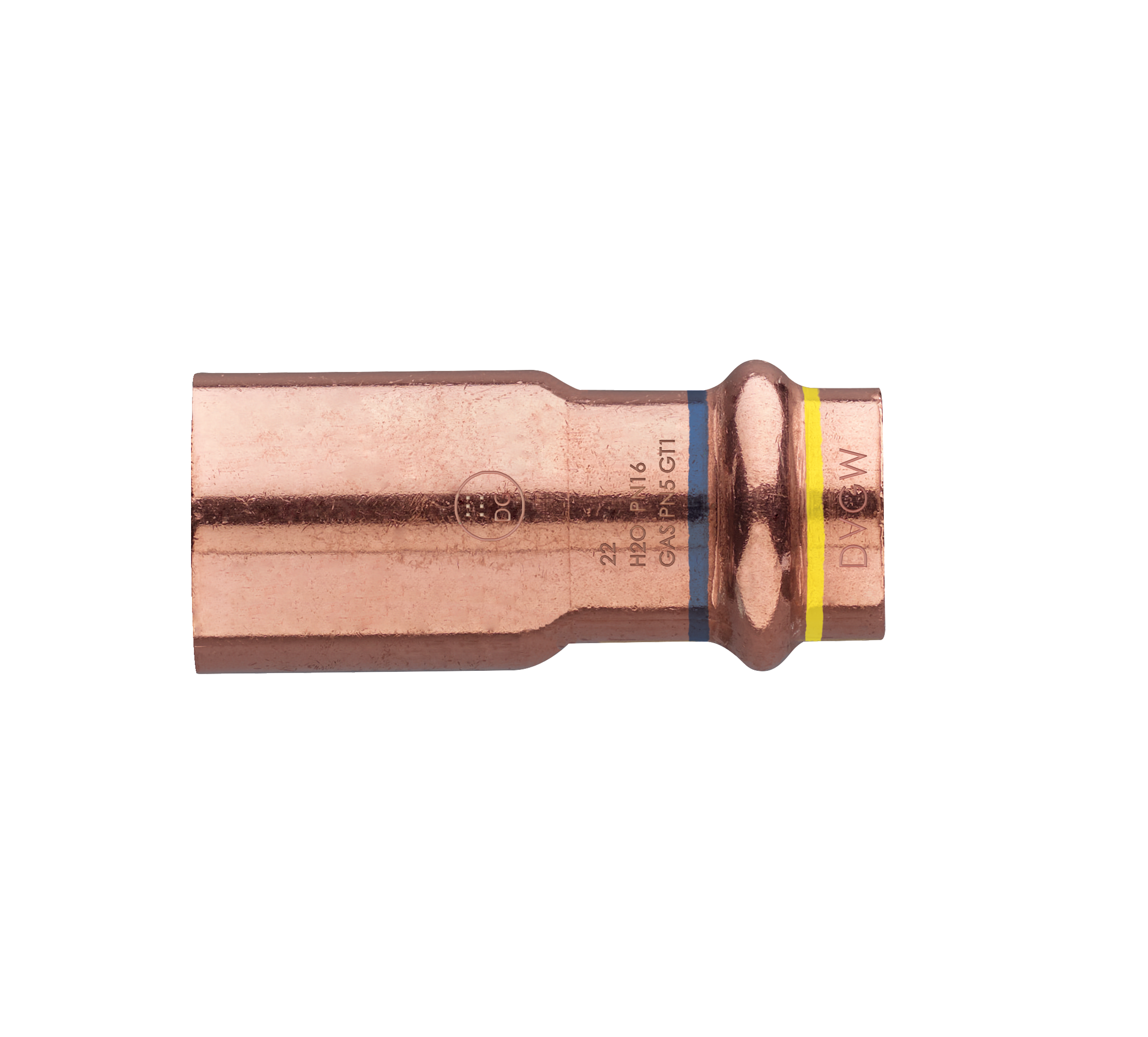

Copper M/F reducer.

Technical specifications

Drawing

Table

CODE	SIZE	MASTER BOX	D1	D2	L	Z
RS9243015012000	15x12	300	15	12	44	26
RS9243018012000	18x12	300	18	12	47	29
RS9243018015000	18x15	200	18	15	50	28
RS9243022015000	22x15	150	22	15	56	34
RS9243022018000	22x18	150	22	18	52	29
RS9243028015000	28x15	100	28	15	60	38
RS9243028018000	28x18	100	28	18	59	36
RS9243028022000	28x22	100	28	22	58	34
RS9243035022000	35x22	60	35	22	64	40
RS9243035028000	35x28	50	35	28	59	34
RS9243042022000	42x22	50	42	22	76	52
RS9243042028000	42x28	40	42	28	74	49
RS9243042035000	42x35	40	42	35	68	42
RS9243054035000	54x35	20	54	35	89	63
RS9243054042000	54x42	20	54	42	90	54

Notes

For dimensions > 54 mm, item RR9243 is available. Water use only.
