COPPER AND BRONZE M-PROFILE PRESSFITTINGS
/
ZM9131
COPPER AND BRONZE M-PROFILE PRESSFITTINGS

ZM9131

Made in Italy Made in Italy

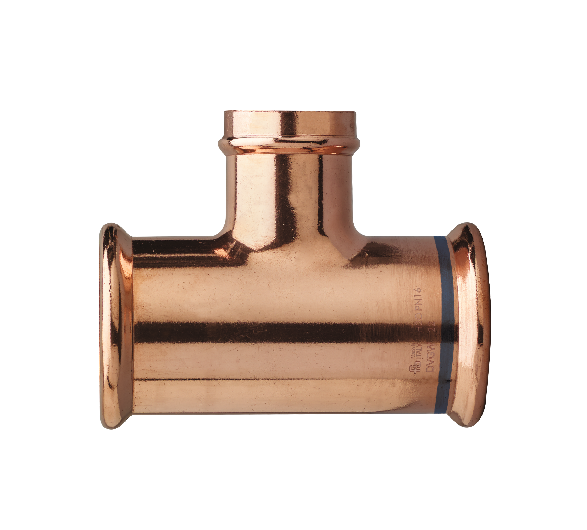

Copper F/F/F reducing tee.
Technical specifications
d1 x d2 x d3 BAG MASTER BOX CODE A B ZA ZB
12 x 15 x 12 10 100 ZM9131012015012 56 27 10 7
15 x 12 x 12 10 100 ZM9131015012012 51 25 6,5 7
15 x 12 x 15 10 100 ZM9131015012015 64 32 13 14
15 x 15 x 12 5 70 ZM9131015015012 68 32 15 12
15 x 18 x 15 5 80 ZM9131015018015 62 31 11 11
15 x 22 x 15 5 50 ZM9131015022015 74 34 17 11
18 x 12 x 15 5 50 ZM9131018012015 60 29 10 11
18 x 12 x 18 10 80 ZM9131018012018 68 35 15 17
18 x 15 x 15 10 80 ZM9131018015015 60 29 10 9
18 x 15 x 18 10 80 ZM9131018015018 68 35 14 15
18 x 18 x 15 10 80 ZM9131018018015 74 34 17 14
18 x 22 x 18 5 50 ZM9131018022018 74 34 17 11
22 x 12 x 22 5 60 ZM9131022012022 74 34 16,5 16
22 x 15 x 15 5 50 ZM9131022015015 83 38 20 18
22 x 15 x 18 5 50 ZM9131022015018 81 38 19 18
22 x 15 x 22 5 50 ZM9131022015022 74 38 15,5 18
22 x 18 x 15 5 50 ZM9131022018015 81 38 19 18
22 x 18 x 18 5 50 ZM9131022018018 81 38 19 18
22 x 18 x 22 5 50 ZM9131022018022 74 38 15,5 18
22 x 22 x 15 5 50 ZM9131022022015 84 37 20,5 14
22 x 22 x 18 5 50 ZM9131022022018 83 37 20 14
22 x 28 x 22 5 35 ZM9131022028022 78 38 16 15
28 x 15 x 22 5 40 ZM9131028015022 85 41 19,5 21
28 x 15 x 28 5 30 ZM9131028015028 84 41 20,5 21
28 x 18 x 22 5 40 ZM9131028018022 85 41 19,5 21
28 x 18 x 28 5 30 ZM9131028018028 84 41 19 18
28 x 22 x 22 5 30 ZM9131028022022 85 41 19,5 18
28 x 22 x 28 5 30 ZM9131028022028 84 41 22 24
28 x 28 x 15 5 40 ZM9131028028015 92 42 24,5 19
28 x 28 x 22 5 30 ZM9131028028022 88 42 21 19
35 x 15 x 35 5 25 ZM9131035015035 90 44 22 24
35 x 18 x 35 5 25 ZM9131035018035 90 44 20,5 22
35 x 22 x 22 5 20 ZM9131035022022 92 45 21,5 22
35 x 22 x 28 5 25 ZM9131035022028 92 45 21,5 22
35 x 22 x 35 5 20 ZM9131035022035 90 45 25,5 21
35 x 28 x 28 5 20 ZM9131035028028 100 44 25,5 21
35 x 28 x 35 5 20 ZM9131035028035 100 44 25 28
35 x 35 x 22 5 20 ZM9131035035022 100 50 25,5 24
35 x 35 x 28 5 20 ZM9131035035028 100 50 25,5 24
42 x 15 x 42 1 15 ZM9131042015042 100 48 23,5 25
42 x 22 x 42 1 15 ZM9131042022042 100 48 29,5 26
42 x 28 x 42 1 10 ZM9131042028042 112 49 28 24
42 x 35 x 35 1 20 ZM9131042035035 112 49 28 24
42 x 35 x 42 1 10 ZM9131042035042 112 50 24 28
54 x 22 x 54 1 10 ZM9131054022054 120 54 31 31
54 x 28 x 54 1 10 ZM9131054028054 120 55 31 32
54 x 35 x 54 1 10 ZM9131054035054 122 55 30,5 29
54 x 42 x 54 1 10 ZM9131054042054 138 64 36,5 34
66,7 x 28 x 66,7 1 5 ZM9131067028067 182 76 46 53
66,7 x 35 x 66,7 1 5 ZM9131067035067 182 79 46 56
66,7 x 42 x 66,7 1 5 ZM9131067042067 182 82 46 52
66,7 x 54 x 66,7 1 5 ZM9131067054067 182 91 46 56
76,1 x 22 x 76,1 1 5 ZM9131076022076 148 62 48 41
76,1 x 28 x 76,1 1 4 ZM9131076028076 152 65 52 42
76,1 x 35 x 76,1 1 4 ZM9131076035076 160 67 60 41
76,1 x 42 x 76,1 1 4 ZM9131076042076 172 80 72 50
76,1 x 54 x 76,1 1 5 ZM9131076054076 218 85 118 50
108 x 54 x 108 1 2 ZM9131108054108 234 125 94 75
