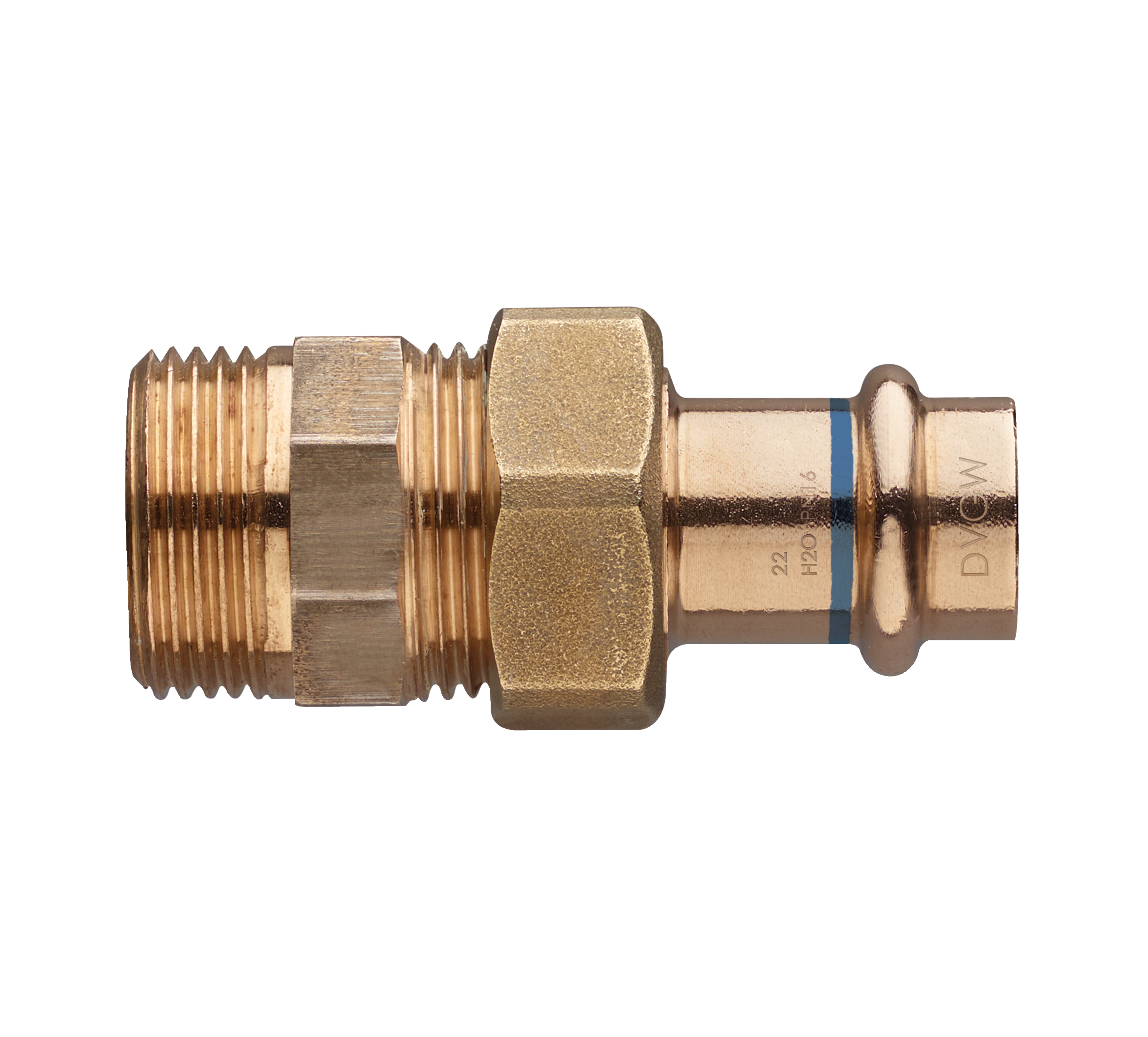

Technical specifications
Drawing
Table
CODE SIZE MASTER BOX R D L S1 S2 Z
RZ8341A12012000 1/2x12 80 1 12 61 30 30 43
RZ8341A12015000 1/2x15 60 1 15 66 30 30 44
RZ8341A12018000 1/2x18 50 1 18 69 30 30 46
RZ8341A12022000 1/2x22 30 1 22 83 30 30 59
RZ8341A34015000 3/4x15 50 3 15 69 30 30 47
RZ8341A34018000 3/4x18 50 3 18 72 30 30 49
RZ8341A34022000 3/4x22 50 3 22 86 30 30 62
RZ8341A34028000 3/4x28 50 3 28 81 30 30 56
RZ8341A38012000 3/8x12 150 3 12 63 25 25 45
RZ8341B01022000 1x22 40 1 22 81 37 35 57
RZ8341B01028000 1x28 20 1 28 83 46 45 58
RZ8341B12042000 1.1/2x42 10 1 42 98 64 60 62
RZ8341B14035000 1.1/4x35 20 1 35 88 52 50 62
RZ8341C02054000 2x54 8 2 54 106 85 75 66
