Technical specifications

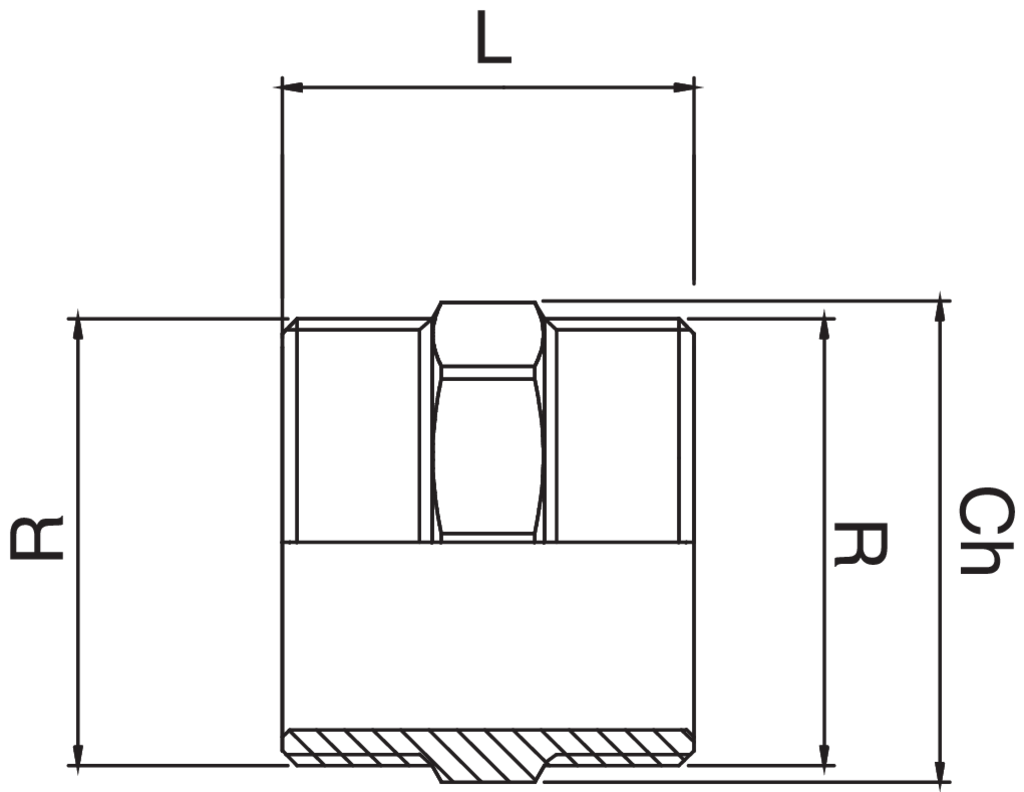

Drawing
Table
CODE SIZE MASTER BOX R CH L
RB3280A12A12000 1/2 250 1 21 30
RB3280A14A14000 1/4 250 1 17 25
RB3280A34A34000 3/4 100 3 27 33
RB3280A38A38000 3/8 500 3 17 26
RB3280B01B01000 1 100 1 34 40
RB3280B12B12000 1.1/2 40 1 48 47
RB3280B14B14000 1.1/4 50 1 42 45
RB3280C02C02000 2 25 2 60 55
RB3280C12C12000 2.1/2 8 2 90 65
RB3280D03D03000 3 15 3 95 75
