B5358G
B5358G

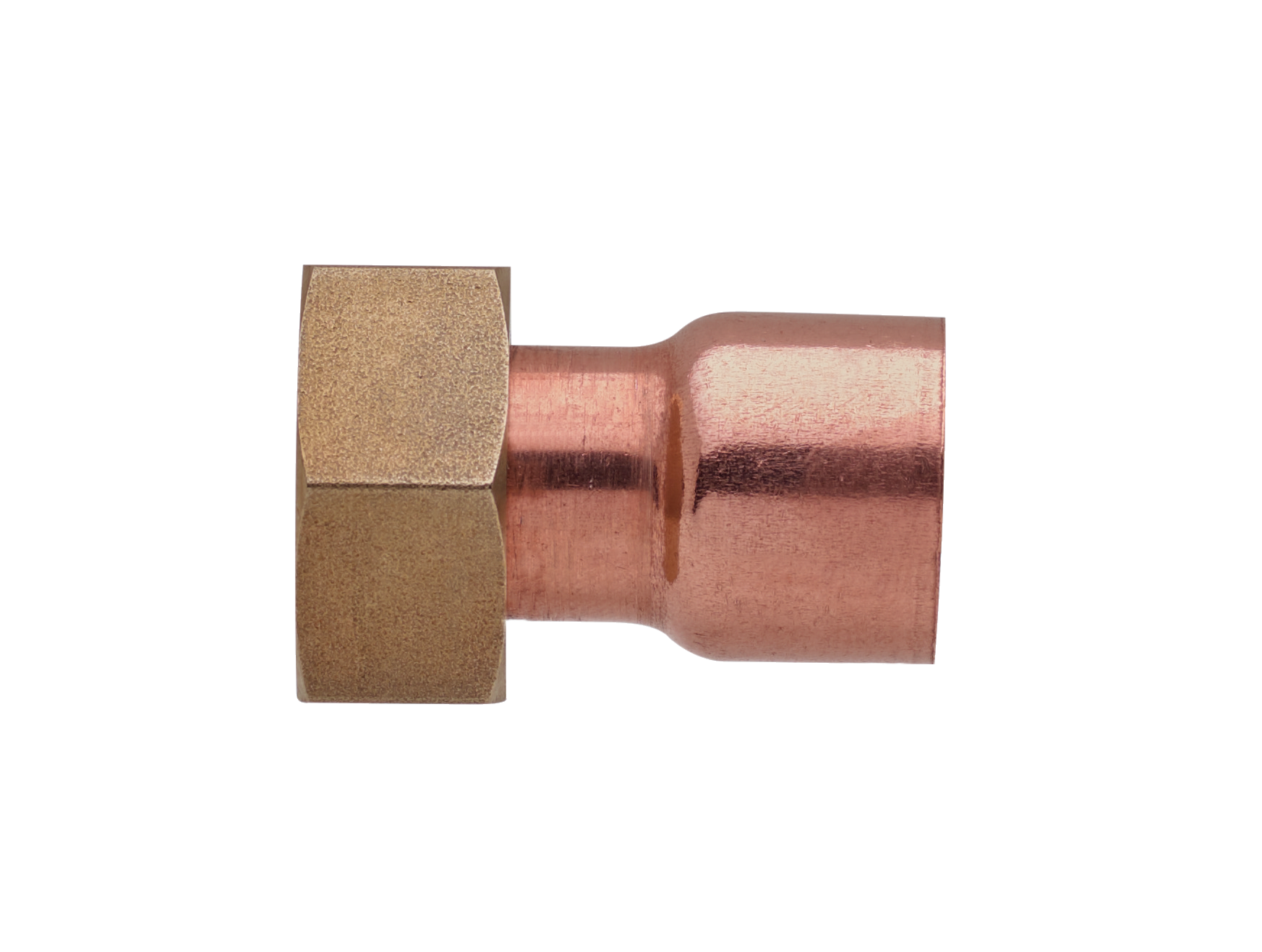

Raccord droit avec écrou en laiton filetage femelle.
Spécifications techniques

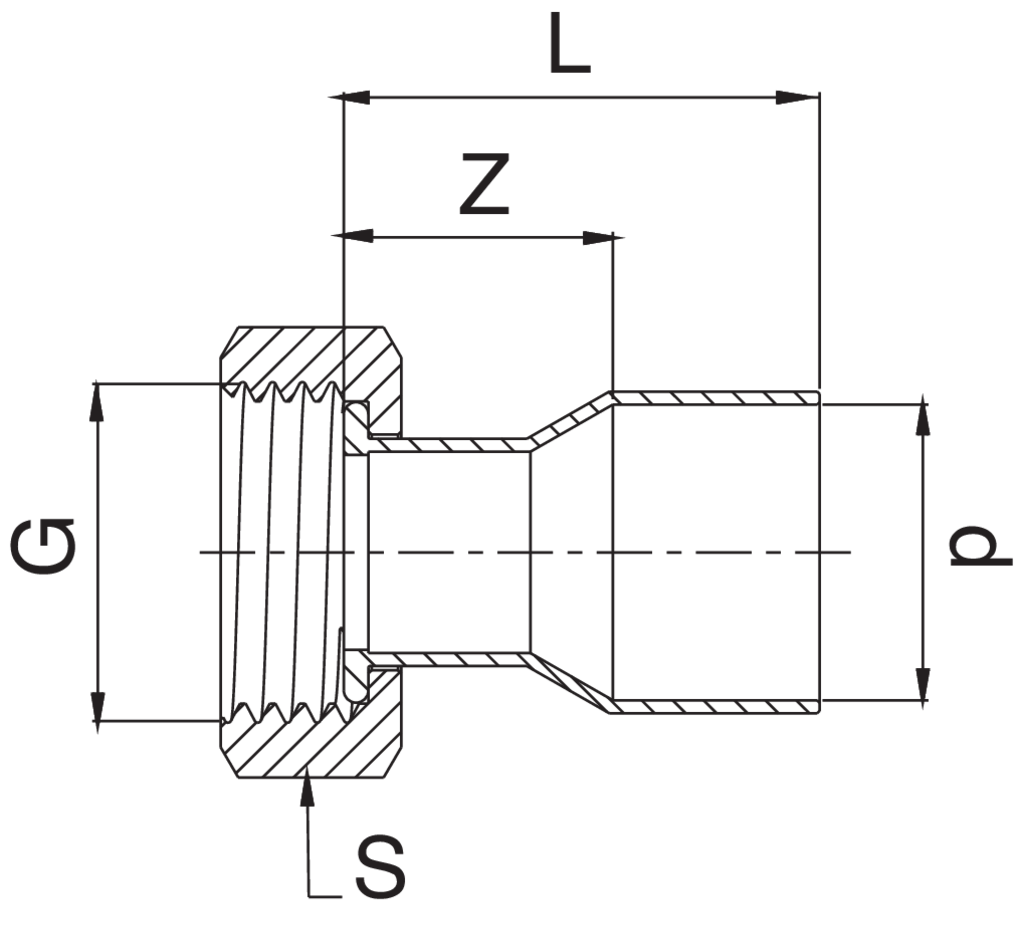

Dessin
Table
G x d
BAG
Master box
Code
L min
S
Z
1/2" x 10
10
250
B5358GA12010000
21
24
13
1/2" x 12
10
250
B5358GA12012000
25
24
16
1/2" x 14
10
250
B5358GA12014000
25
24
14
1/2" x 15
10
250
B5358GA12015000
25
24
14
1/2" x 16
10
200
B5358GA12016000
25
24
14
3/4" x 12
10
200
B5358GA34012000
25
30
16
3/4" x 14
10
200
B5358GA34014000
26
30
15
3/4" x 15
10
200
B5358GA34015000
27
30
16
3/4" x 16
10
200
B5358GA34016000
27
30
16
3/4" x 18
10
150
B5358GA34018000
28
30
15
3/4" x 20
10
150
B5358GA34020000
34
30
19
3/4" x 22
10
150
B5358GA34022000
34
30
19
3/8" x 12
10
150
B5358GA38012000
22
21
13
1" x 18
10
100
B5358GB01018000
31
37
18
1" x 22
10
100
B5358GB01022000
35
37
20
1"1/4 x 28
10
50
B5358GB14028000
39
46
21
2" x 54
1
16
B5358GC02054000
67
64
35
