RACCORDS A SOUDER EN CUIVRE

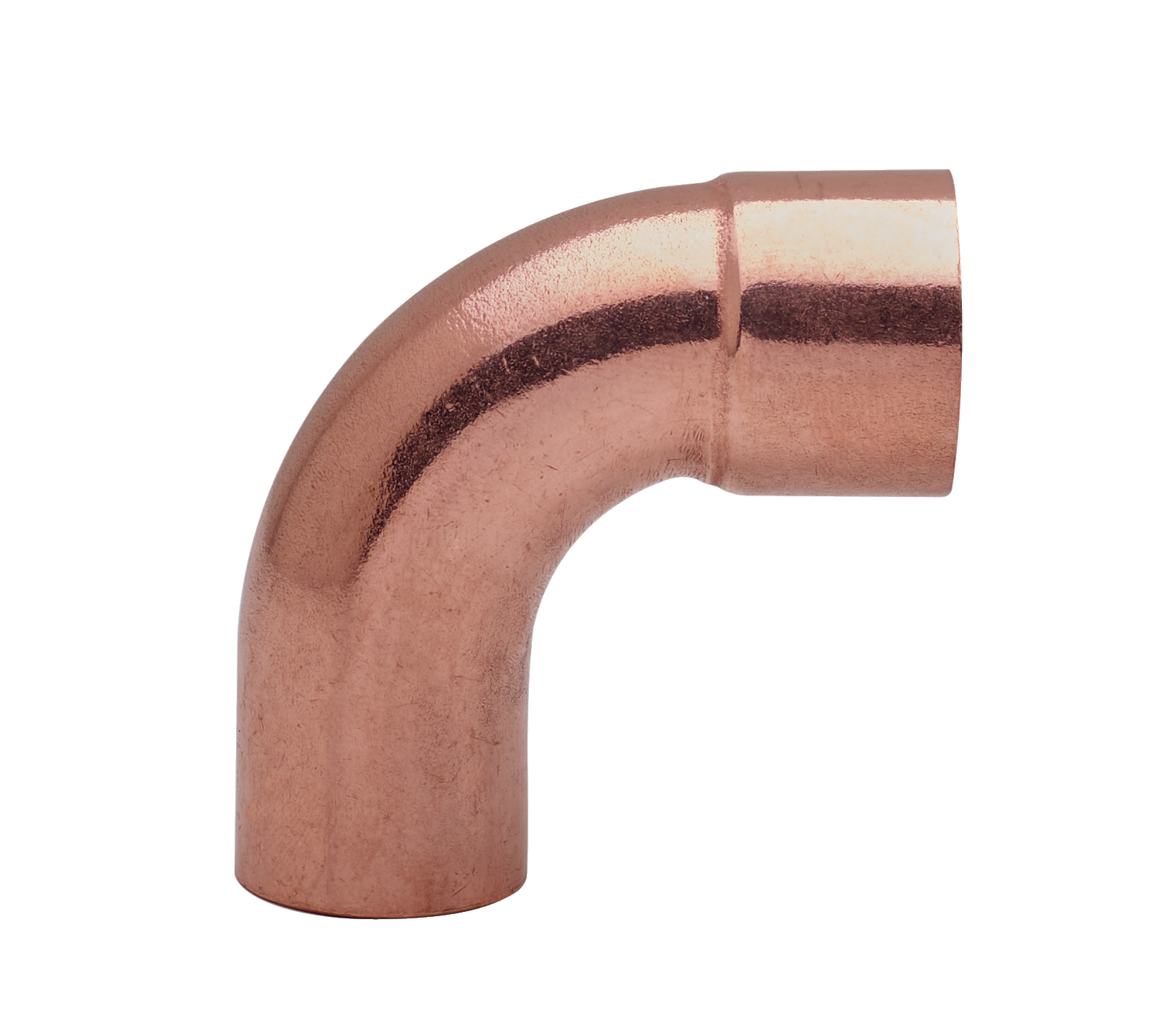

RR5001

Courbe 90° M/F.

Spécifications techniques

d	BAG	MASTER BOX	CODE	A	B
6	10	1000	RR5001006006000	15,5	17,5
8	25	1000	RR5001008008000	16,5	18
10	10	700	RR5001010010000	23,5	24
12	10	400	RR5001012012000	27	30,5
14	10	300	RR5001014014000	27,5	29,5
15	10	300	RR5001015015000	29	30,5
16	10	240	RR5001016016000	30	32
18	10	150	RR5001018018000	36,5	38
20	10	150	RR5001020020000	40	42
22	10	100	RR5001022022000	41	42,5
25	10	80	RR5001025025000	45,5	46,5
28	10	60	RR5001028028000	54	56
32	10	80	RR5001032032000	60	62
35	5	80	RR5001035035000	70	67
36	5	80	RR5001036036000	62	66
40	5	50	RR5001040040000	73	76
42	5	40	RR5001042042000	78,5	79
52	1	10	RR5001052052000	94	97
54	1	10	RR5001054054000	97	99
64	1	5	RR5001064064000	110	115
66,7	1	10	RR5001067067000	127	130
76,1	1	8	RR5001076076000	125	128
80	1	6	RR5001080080000	150	152
88,9	1	6	RR5001089089000	148	154
108	1	2	RR5001108108000	179	180
