Technical specifications

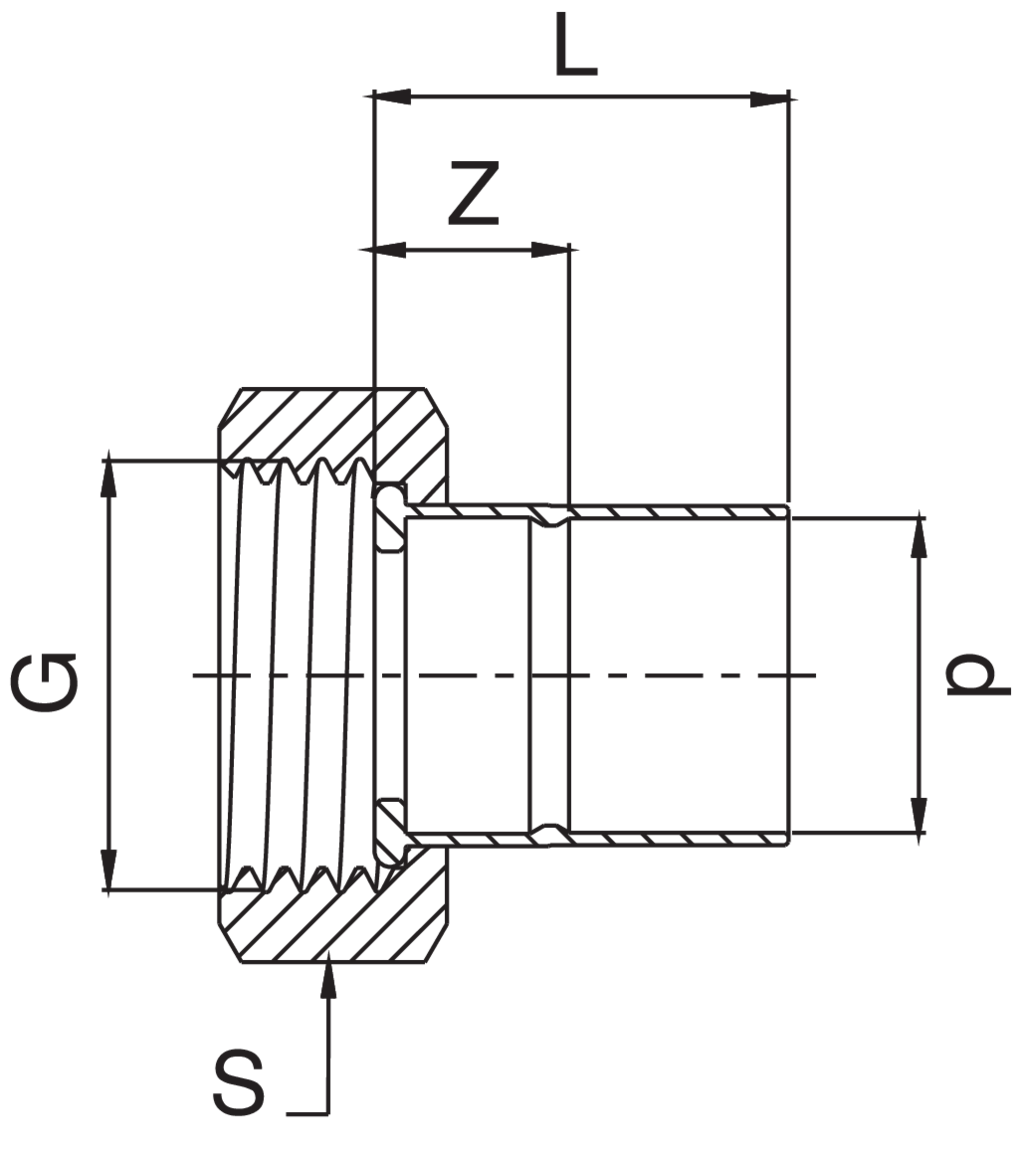

Drawing
Table
CODE SIZE MASTER BOX G D L MIN, S Z
B5359GA12010000 1/2x10 200 1 10 20 24 12
B5359GA12012000 1/2x12 250 1 12 20 24 11
B5359GA12014000 1/2x14 250 1 14 20 24 10
B5359GA12015000 1/2x15 250 1 15 20 24 10
B5359GA34012000 3/4x12 100 3 12 20 30 11
B5359GA34014000 3/4x14 250 3 14 20 30 10
B5359GA34015000 3/4x15 200 3 15 20 30 10
B5359GA34016000 3/4x16 200 3 16 20 30 10
B5359GA34018000 3/4x18 150 3 18 22 30 10
B5359GB01018000 1x18 100 1 18 22 37 10
B5359GB01022000 1x22 100 1 22 25 37 10
B5359GB14028000 1.1/4x28 50 1 28 28 46 10
Applications
