RG5001
RG5001

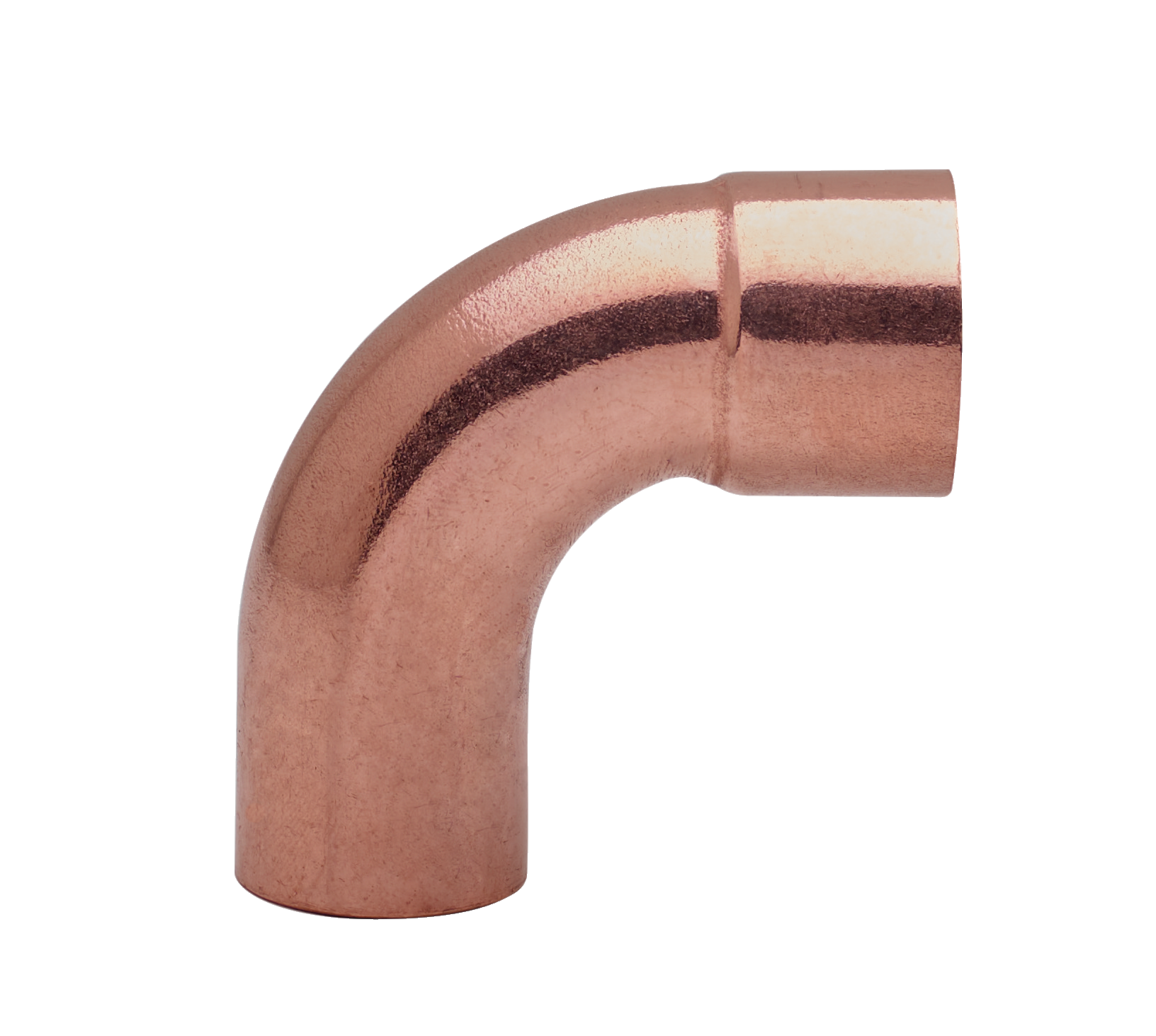

M/F 90° elbow.
Technical specifications
Drawing
Table
CODE
SIZE
DN
MASTER BOX
A
B
RG5001022022000
22
22
100
44
46
RG5001028028000
28
28
50
55
57
RG5001035035000
35
35
80
68
70
RG5001042042000
42
42
50
80
81
RG5001054054000
54
54
10
100
102
RG5001064064000
64
64
5
112
114
RG5001133133000
133
133
1
209
212
Applications
