QM8471
QM8471

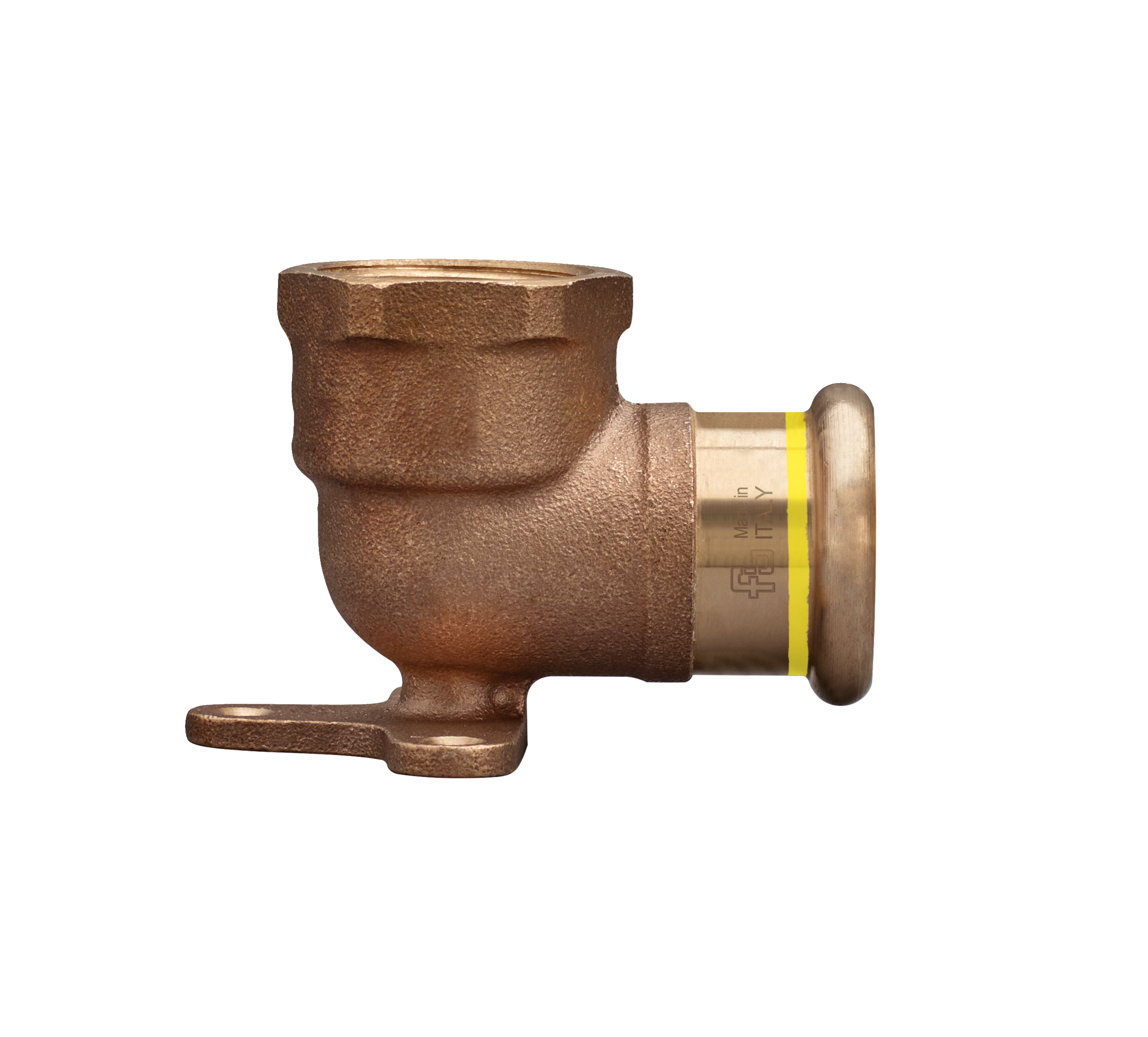

Bronze F/female thread 90° elbow with wallplate.
Technical specifications
Drawing
Table
RP X D1
BAG
MASTER BOX
CODE
A
B
C
DF
RF
1/2" x 12
10
80
QM8471A12012000
40
22
34
4,2
16
1/2" x 15
10
80
QM8471A12015000
40
24
34
4,2
16
1/2" x 18
5
70
QM8471A12018000
40
24
38
4,2
16
3/4" x 22
5
40
QM8471A34022000
48
26
46
4,2
18
