RS8090
RS8090

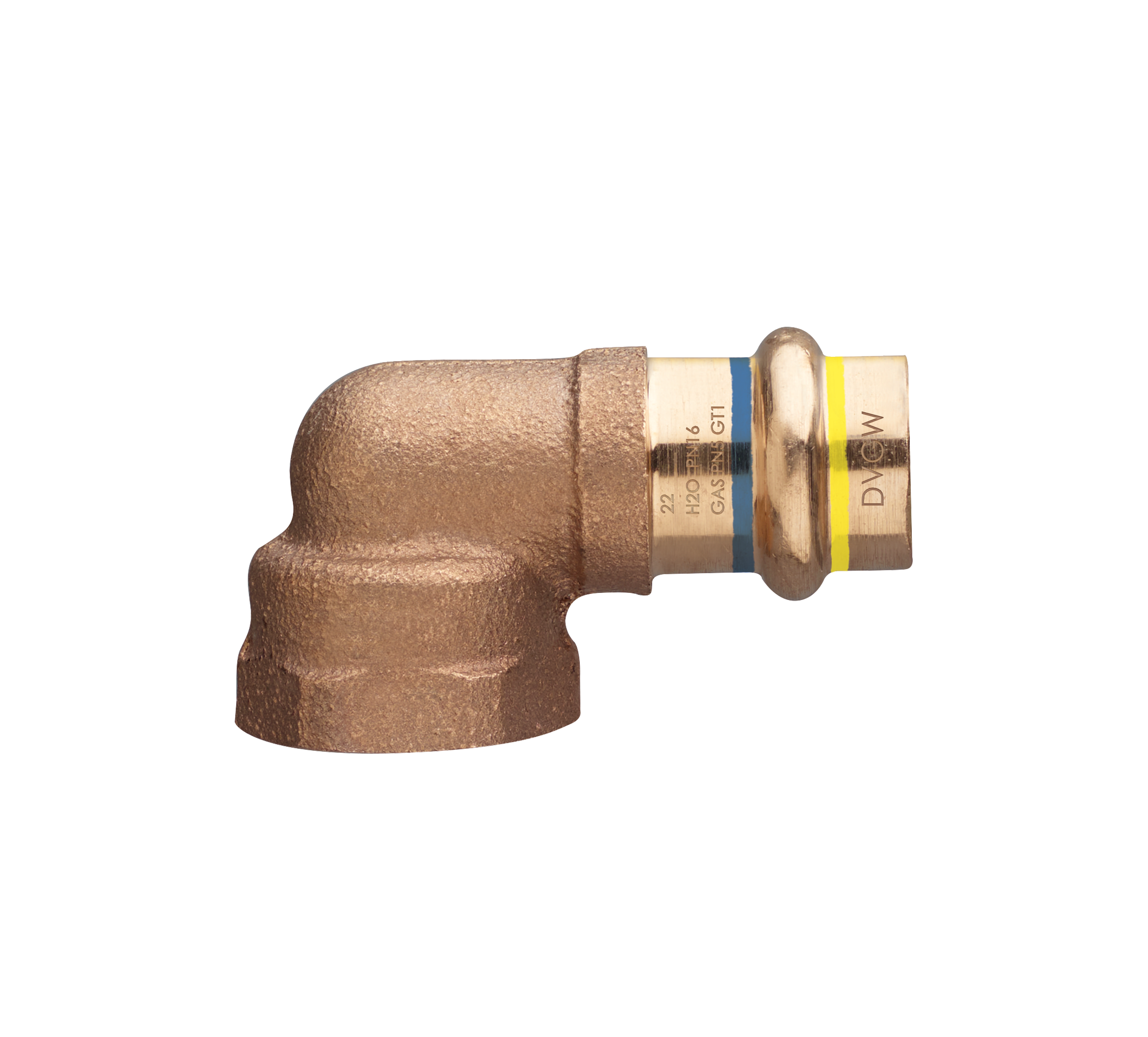

Bronze F/female thread 90° elbow.
Technical specifications
Drawing
Table
CODE
SIZE
MASTER BOX
RP
D
L1
L2
Z1
Z2
RS8090A12012000
1/2x12
150
1
12
44
22
26
11
RS8090A12015000
1/2x15
100
1
15
45
24
23
13
RS8090A12018000
1/2x18
100
1
18
47
24
24
13
RS8090A12022000
1/2x22
60
1
22
49
24
25
13
RS8090A34015000
3/4x15
70
3
15
49
31
27
16
RS8090A34018000
3/4x18
70
3
18
50
24
27
9
RS8090A34022000
3/4x22
60
3
22
49
29
25
6
RS8090A34028000
3/4x28
50
3
28
55
30
30
15
RS8090A38012000
3/8x12
150
3
12
44
18
26
9
RS8090A38015000
3/8x15
100
3
15
47
19
25
10
RS8090B01022000
1x22
40
1
22
60
33
36
10
RS8090B01028000
1x28
40
1
28
61
33
36
9
RS8090B12042000
1.1/2x42
20
1
42
77
43
41
25
RS8090B14035000
1.1/4x35
20
1
35
67
40
41
22
RS8090C02054000
2x54
8
2
54
97
57
57
39
