Specifiche tecniche

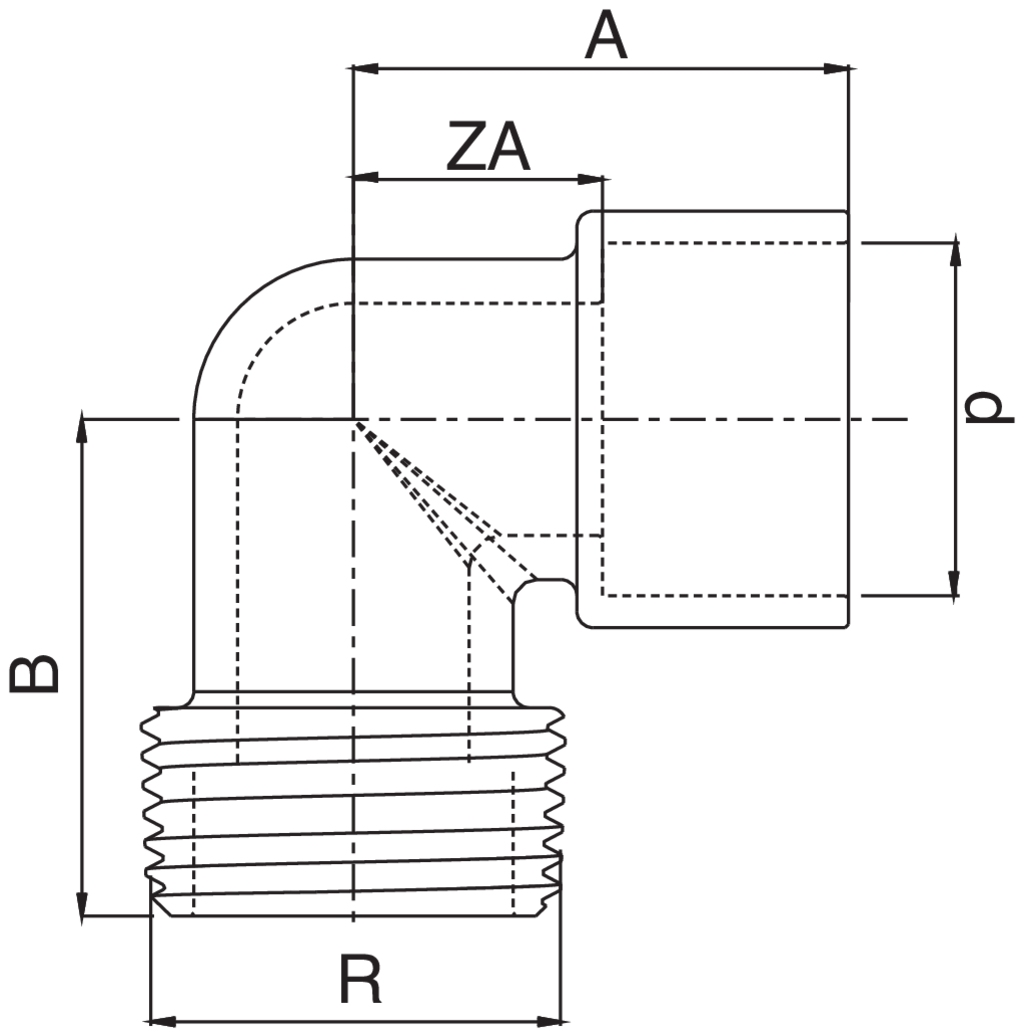

Disegno
Tabella
CODICE DIMENSIONI MASTER BOX R D A B ZA
RB4092A12012000 1/2x12 250 1 12 17.5 25 8.9
RB4092A12014000 1/2x14 250 1 14 20 24 9.4
RB4092A12015000 1/2x15 200 1 15 21 32 10.4
RB4092A12016000 1/2x16 150 1 16 23 32 12.4
RB4092A12018000 1/2x18 150 1 18 22 27 9.4
RB4092A12022000 1/2x22 100 1 22 26 31 10.6
RB4092A34018000 3/4x18 100 3 18 25 31 12.4
RB4092A34022000 3/4x22 100 3 22 31 31 15.6
RB4092A34028000 3/4x28 100 3 28 33 34.5 14.6
RB4092A38010000 3/8x10 200 3 10 18 23 10.2
RB4092A38012000 3/8x12 250 3 12 18 23 9.4
RB4092A38015000 3/8x15 200 3 15 24 25 13.4
RB4092B01022000 1x22 75 1 22 30 36.5 14.6
RB4092B01028000 1x28 50 1 28 39 36.5 20.6
RB4092B14035000 1.1/4x35 50 1 35 46 49 23
