RR5130
RAME A SALDARE

RR5130

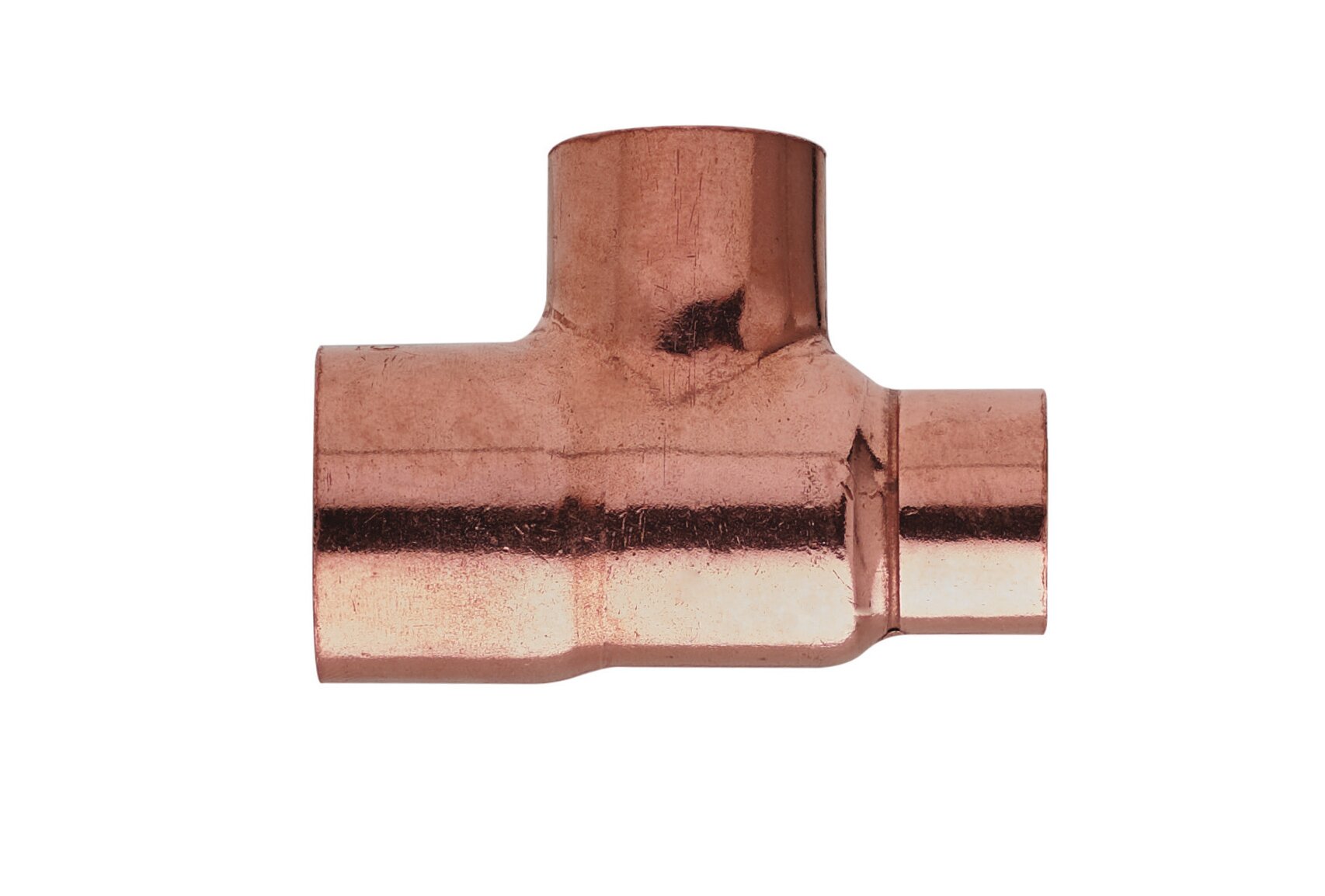

Raccordo a T femmina ridotto laterale.

Specifiche tecniche
d x d1 x d2 BAG MASTER BOX CODICE A B C
8 x 6 x 6 10 300 RR5130008006006 24 12 11
10 x 8 x 8 10 600 RR5130010008008 28 14 13
10 x 10 x 8 10 500 RR5130010010008 30 15 14
12 x 8 x 8 10 450 RR5130012008008 30 14 15
12 x 8 x 10 10 300 RR5130012008010 30 14,5 15
12 x 10 x 8 10 450 RR5130012010008 30 15 16
12 x 10 x 10 10 400 RR5130012010010 31,5 15 15
12 x 12 x 8 10 400 RR5130012012008 31 15 15
12 x 12 x 10 10 400 RR5130012012010 34 17 17
14 x 10 x 10 10 300 RR5130014010010 34 17 16,5
14 x 10 x 12 10 300 RR5130014010012 35 17 16,5
14 x 12 x 10 10 300 RR5130014012010 37 18 17
14 x 12 x 12 10 300 RR5130014012012 37 18 17
14 x 14 x 10 10 300 RR5130014014010 38 19 19
14 x 14 x 12 10 300 RR5130014014012 39 19,5 19
14 x 16 x 12 10 250 RR5130014016012 49 23,5 24,5
14 x 18 x 12 10 200 RR5130014018012 49,5 24,5 25,5
15 x 10 x 10 10 400 RR5130015010010 35 17 17
15 x 10 x 12 10 400 RR5130015010012 35 17,5 17
15 x 12 x 12 10 250 RR5130015012012 37 18 18
15 x 15 x 10 10 300 RR5130015015010 39 20 19,5
15 x 15 x 12 10 300 RR5130015015012 40 19,5 19,5
15 x 15 x 18 10 300 RR5130015015018 41 19,5 19,5
15 x 18 x 12 10 300 RR5130015018012 45,5 23 23,5
16 x 12 x 12 10 250 RR5130016012012 38 18 18,5
16 x 12 x 14 10 250 RR5130016012014 38,5 18 18,5
16 x 14 x 12 10 250 RR5130016014012 39 19 20
16 x 14 x 14 10 200 RR5130016014014 41 19 20,5
16 x 16 x 10 10 250 RR5130016016010 41,5 20 20,5
16 x 16 x 12 10 250 RR5130016016012 41,5 20 20
16 x 16 x 14 10 250 RR5130016016014 42 20 20
16 x 18 x 14 10 300 RR5130016018014 44 20,5 22,5
18 x 10 x 10 10 350 RR5130018010010 41 20 19
18 x 10 x 12 10 350 RR5130018010012 41 20 19
18 x 12 x 12 10 350 RR5130018012012 41 20 19
18 x 12 x 14 10 350 RR5130018012014 43 20 19
18 x 12 x 15 10 350 RR5130018012015 43 20 19
18 x 12 x 16 10 350 RR5130018012016 42 20 19
18 x 14 x 12 10 300 RR5130018014012 41 21 21
18 x 14 x 14 10 300 RR5130018014014 47 21 21
18 x 14 x 16 10 300 RR5130018014016 45 21 21,5
18 x 15 x 12 10 300 RR5130018015012 44 21,5 21,5
18 x 15 x 15 10 180 RR5130018015015 44 21,5 21,5
18 x 16 x 12 10 200 RR5130018016012 44 22 21,5
18 x 16 x 14 10 300 RR5130018016014 45 22 21,5
18 x 16 x 16 10 300 RR5130018016016 45 22 21,5
18 x 18 x 10 10 300 RR5130018018010 47 23 23,5
18 x 18 x 12 10 250 RR5130018018012 47 23 23,5
18 x 18 x 14 10 250 RR5130018018014 48 23 23,5
18 x 18 x 15 10 250 RR5130018018015 48 23 23,5
18 x 18 x 16 10 300 RR5130018018016 48 23 23,5
18 x 22 x 14 10 250 RR5130018022014 52 25 27
18 x 22 x 15 10 200 RR5130018022015 54 27 27
20 x 14 x 16 10 200 RR5130020014016 50 23 23,5
20 x 18 x 18 10 200 RR5130020018018 53 26 25
20 x 20 x 14 10 200 RR5130020020014 54 27 26,5
20 x 20 x 16 10 200 RR5130020020016 54 27 26,5
20 x 20 x 18 10 200 RR5130020020018 54 27 26,5
20 x 22 x 16 10 250 RR5130020022016 56 27 26,5
22 x 12 x 12 10 250 RR5130022012012 50 23 21,5
22 x 12 x 14 10 250 RR5130022012014 49 23 23,5
22 x 12 x 15 10 250 RR5130022012015 48 23 23,5
22 x 12 x 18 10 250 RR5130022012018 47 23 21
22 x 14 x 14 10 200 RR5130022014014 47 24 23
22 x 14 x 16 10 200 RR5130022014016 47 24 23
22 x 14 x 18 10 200 RR5130022014018 52 25 23,5
22 x 15 x 12 10 150 RR5130022015012 50 24,5 23,5
22 x 15 x 15 10 200 RR5130022015015 49,5 24 23
22 x 15 x 18 10 200 RR5130022015018 49 24 23
22 x 16 x 14 10 200 RR5130022016014 51,5 25 23,5
22 x 16 x 16 10 200 RR5130022016016 50,5 23,5 24,5
22 x 16 x 18 10 200 RR5130022016018 50 25 23,5
22 x 18 x 12 10 150 RR5130022018012 52 26 25
22 x 18 x 14 10 200 RR5130022018014 52 26 25
22 x 18 x 15 10 200 RR5130022018015 51 25,5 25
22 x 18 x 16 10 200 RR5130022018016 51 25,5 25
22 x 18 x 18 10 150 RR5130022018018 53 25,5 25
22 x 22 x 12 10 250 RR5130022022012 55 27,5 29
22 x 22 x 14 10 250 RR5130022022014 56 27,5 28,5
22 x 22 x 15 10 250 RR5130022022015 56 27,5 28,5
22 x 22 x 16 10 250 RR5130022022016 56 27,5 29
22 x 22 x 18 10 250 RR5130022022018 57 27,5 29
22 x 22 x 20 10 200 RR5130022022020 58 28 31
22 x 28 x 15 10 200 RR5130022028015 64 31 32,5
28 x 12 x 12 10 50 RR5130028012012 51 26 24
28 x 12 x 18 10 180 RR5130028012018 53,5 25,5 24,5
28 x 12 x 22 10 180 RR5130028012022 54,5 25,5 24,5
28 x 14 x 14 10 200 RR5130028014014 54 28 26
28 x 15 x 12 10 100 RR5130028015012 54 28 26
28 x 15 x 15 10 200 RR5130028015015 57 27,5 27
28 x 15 x 18 10 150 RR5130028015018 57 27,5 27
28 x 15 x 22 10 200 RR5130028015022 59 27,5 27
28 x 16 x 16 10 200 RR5130028016016 58 28 27
28 x 16 x 18 10 200 RR5130028016018 58 28 27
28 x 16 x 22 10 150 RR5130028016022 56 28 26
28 x 18 x 12 10 180 RR5130028018012 57 29 29
28 x 18 x 15 10 150 RR5130028018015 59 29 29
28 x 18 x 18 10 180 RR5130028018018 60 29 29
28 x 18 x 22 10 150 RR5130028018022 61 29 29
28 x 22 x 12 10 150 RR5130028022012 61 31 31
28 x 22 x 15 10 150 RR5130028022015 62 31 31,5
28 x 22 x 16 10 150 RR5130028022016 63 31 31,5
28 x 22 x 18 10 150 RR5130028022018 63,5 31 31,5
28 x 22 x 22 10 160 RR5130028022022 65 31 31
28 x 28 x 12 10 200 RR5130028028012 70 34 34,5
28 x 28 x 14 5 100 RR5130028028014 71 34 34
28 x 28 x 15 10 150 RR5130028028015 69 34 33,5
28 x 28 x 16 10 150 RR5130028028016 68 34 34
28 x 28 x 18 10 100 RR5130028028018 70 34 34,5
28 x 28 x 22 10 130 RR5130028028022 69 34 33,5
28 x 35 x 22 5 70 RR5130028035022 76 38 36
35 x 15 x 28 5 100 RR5130035015028 67 32 30,5
35 x 18 x 22 5 100 RR5130035018022 67,5 33,5 32
35 x 18 x 28 5 100 RR5130035018028 70 33,5 32
35 x 22 x 15 5 100 RR5130035022015 71 36 34,5
35 x 22 x 18 5 100 RR5130035022018 72 36 34
35 x 22 x 22 5 100 RR5130035022022 73 36 35
35 x 22 x 28 5 100 RR5130035022028 74 36 35
35 x 28 x 18 5 80 RR5130035028018 77 39 38
35 x 28 x 22 5 100 RR5130035028022 80 39 38
35 x 28 x 28 5 80 RR5130035028028 80 39 38
35 x 35 x 15 5 70 RR5130035035015 83 42 43,5
35 x 35 x 18 5 70 RR5130035035018 84 42 43,5
35 x 35 x 22 5 70 RR5130035035022 85 42 43,5
35 x 35 x 28 5 70 RR5130035035028 87 42 43,5
36 x 28 x 22 5 100 RR5130036028022 86 42 44
42 x 22 x 35 5 70 RR5130042022035 84 40 39
42 x 28 x 22 5 50 RR5130042028022 87 43 41,5
42 x 28 x 28 5 60 RR5130042028028 87 43 41,5
42 x 28 x 35 5 50 RR5130042028035 90 43 41,5
42 x 35 x 28 5 40 RR5130042035028 96 46,5 46
42 x 35 x 35 5 40 RR5130042035035 96 46,5 46
42 x 42 x 22 5 40 RR5130042042022 99 50 50
42 x 42 x 28 5 40 RR5130042042028 101 50 50
42 x 42 x 35 5 40 RR5130042042035 103 50 50
54 x 22 x 42 1 20 RR5130054022042 93 46 45
54 x 28 x 42 1 10 RR5130054028042 103 48,5 49
54 x 35 x 35 1 8 RR5130054035035 107 51,5 54
54 x 35 x 42 1 10 RR5130054035042 108 51,5 53
54 x 42 x 42 1 10 RR5130054042042 115 54,5 57
54 x 54 x 22 1 20 RR5130054054022 121 61 55
54 x 54 x 28 1 20 RR5130054054028 122 61 57
54 x 54 x 35 1 20 RR5130054054035 123 61 60
54 x 54 x 42 1 20 RR5130054054042 126 61 62
